Retractable Simulator Screens
A retractable golf simulator screen — also called a retractable impact screen, roll-up simulator screen, or ceiling-mount retractable golf screen — solves the single biggest barrier to golf simulator installation in a garage or multi-use room: the need to permanently dedicate the space to the simulator. A retractable screen mounts to the ceiling or wall and rolls up out of the way in under 60 seconds when the space is needed for other purposes — parking a car, using a workshop, or reclaiming a living area — then lowers to full playing position without tools or recalibration. GolfSimPlanet carries two retractable simulator screen product lines: Carl’s Place Retractable Impact Screen Kits (ceiling or wall-mount, pre-attached three-layer impact screen on aluminum drive tube and bottom weight bar, available in 94″×126″ and 105″×126″, manual or motorized retraction) and the SportScreen Vanish Series (complete retractable simulator enclosure — three-ply impact screen, blackout side panels, ceiling and corner protection, independent retraction system, available in four sizes: Vanish 11, 13H, 16, and 16H, manual hand crank or remote-controlled motorized retraction compatible with Alexa and Google Home). Both product lines support real golf ball impacts at up to 250 mph and are compatible with all major golf simulator projectors and launch monitors in our catalog. If you are unsure which retractable screen fits your ceiling height, room width, or enclosure configuration, contact our Scottsdale, AZ team before ordering.
G-TRAK Retractable Impact Screen

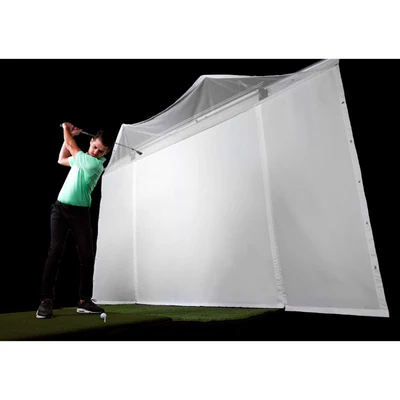

HomeCourse ProScreen 180 Retractable Golf Simulator Screen

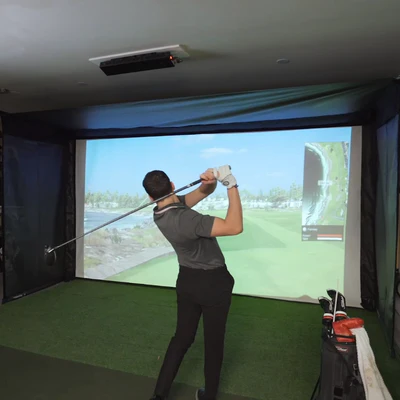

The SportScreen Vanish 16 Golf Simulator Enclosure

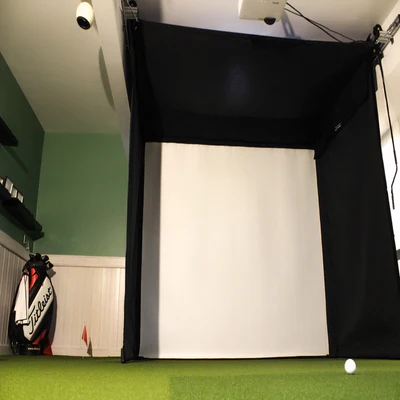

The SportScreen Vanish 11 Golf Simulator Enclosure
The SportScreen Vanish 16H Golf Simulator Enclosure
Retractable Simulator Screen Types — Screen Kit vs. Full Enclosure
Two distinct retractable product types are available at GolfSimPlanet — a screen-only retractable kit (Carl’s Place) and a complete retractable enclosure system (SportScreen Vanish). The right choice depends on whether you already have side barriers and ceiling protection in your bay, or need a complete turnkey retractable solution.
Carl’s Place Retractable Impact Screen Kit
A ready-made retractable impact screen kit — the screen arrives pre-attached to a top aluminum drive tube and bottom weight bar, ready for ceiling or wall mounting. Available sizes: 94″×126″ and 105″×126″. Retraction options: Manual hand crank or motorized. Screen material: Three-layer impact-resistant polyester rated for golf ball impacts up to 250 mph — same screen material used across Carl’s Place standard impact screen range. Installation: All mounting brackets and hardware included; ceiling or wall mount configuration; DIY installation with two people recommended. Projection: Front projection only; compatible with short throw and normal throw projectors. Best for golfers who already have a Carl’s Place or custom enclosure frame and need only a retractable impact screen — not a full enclosure system.
SportScreen Vanish Series — Retractable Enclosure
A complete retractable golf simulator enclosure — the entire structure (impact screen, blackout side panels, ceiling protection, corner protection) retracts to the ceiling via a single independent retraction system in under 60 seconds. Available sizes: Vanish 11 (11 ft wide), Vanish 13H (13 ft, high ceiling), Vanish 16 (16 ft wide), Vanish 16H (16 ft, high ceiling). Retraction options: Manual hand crank or motorized remote control — motorized version is compatible with Alexa and Google Home automation. Screen material: Three-ply impact screen rated for golf ball impacts up to 250 mph, with blackout side panels that eliminate ambient light bleed during play. Installation: Standard brackets for wall or ceiling mounting; DIY installation; all hardware included. Retracted profile: Full enclosure rolls to within 12–14 inches of the ceiling, leaving the full floor area clear for parking or other use. Best for garage simulator builds where the space must function as a regular garage between sessions.
Retractable Screen Product Comparison
| Feature | Carl’s Place Retractable Kit | SportScreen Vanish Series |
|---|---|---|
| Product type | Screen + drive tube kit only | Complete enclosure (screen + side panels + ceiling/corner protection) |
| Available sizes | 94″×126″, 105″×126″ | Vanish 11, 13H, 16, 16H |
| Retraction | Manual or motorized | Manual hand crank or motorized (Alexa/Google Home compatible) |
| Screen layers | 3-layer impact polyester | 3-ply impact screen |
| Ball impact rating | 250 mph | 250 mph |
| Side panels / blackout | Not included | Included (blackout fabric) |
| Mount | Ceiling or wall | Ceiling or wall |
| Retracted profile | Screen rolls to ceiling rail | Full enclosure within 12–14″ of ceiling |
| Best for | Existing enclosure frame, screen replacement only | Garage simulator, full multi-use space conversion |
How to Choose a Retractable Simulator Screen — 4 Key Decisions
1. Screen Only vs. Full Enclosure
If you already have a Carl’s Place or custom enclosure frame with side barriers and ceiling protection, the Carl’s Place Retractable Screen Kit gives you a retractable impact surface without replacing your existing frame. If you are starting from scratch in a garage or multi-use room with no existing frame, the SportScreen Vanish Series provides a complete turnkey retractable enclosure — screen, side panels, and ceiling protection — that retracts as a single unit.
2. Ceiling Height Requirements
Retractable screens require sufficient ceiling height to accommodate the retracted profile (12–14 inches for Vanish Series) plus the full playing height of the screen (minimum 8–8.5 ft of clear playing height recommended for driver shots). Vanish 13H and 16H are specifically designed for high-ceiling garage bays. The Carl’s Place Retractable Kit mounts to the ceiling rail and requires a minimum ceiling height of the screen height plus 6–8 inches for the drive tube and mounting hardware.
3. Manual vs. Motorized Retraction
Manual hand crank retraction is smooth and reliable — both Carl’s Place and SportScreen Vanish hand crank systems operate without tools and take under 60 seconds to fully retract or deploy. Motorized retraction (available on both product lines) operates via remote control or wall switch, and the SportScreen Vanish motorized version is compatible with Alexa and Google Home — allowing voice-command deployment and retraction as part of an automated garage or home automation routine.
4. Projector & Launch Monitor Compatibility
Both retractable screen product lines support front projection only — rear projection is not compatible with either product. Short throw and normal throw projectors both work with retractable screens; projector mount position needs to account for the retracted screen housing at the ceiling. Overhead launch monitors (Uneekor EYE XO, GCHawk) require ceiling mounting separate from the retractable screen housing — our team can advise on mounting layout for overhead launch monitors with retractable screens.
Why Buy Retractable Simulator Screens from GolfSimPlanet?
Retractable simulator screens are the most installation-specific product in the golf simulator category — ceiling height, room width, mount point structural capacity, and projector throw distance all determine which product and size will work in your specific space. GolfSimPlanet’s Scottsdale, AZ team reviews your room dimensions, ceiling height, mount point configuration, and existing enclosure or projector setup before recommending a specific retractable screen model and size — so you are not discovering a fit problem after a large-format screen has been ceiling-mounted and cannot be returned. We carry Carl’s Place Retractable Kits and the SportScreen Vanish Series because they are the two most proven retractable impact screen solutions in the US home simulator market — both rated for 250 mph ball impacts, both available with motorized retraction, and both backed by manufacturer warranties. Every retractable screen order is reviewed for compatibility with your projector, launch monitor, and hitting area layout before it ships.
Retractable Simulator Screen FAQ
How quickly does a retractable golf simulator screen retract?
Both the Carl’s Place Retractable Kit and SportScreen Vanish Series fully retract in under 60 seconds — manual hand crank and motorized versions both achieve this. The SportScreen Vanish retracts the entire enclosure (screen plus blackout side panels plus ceiling protection) as a single integrated unit to within 12–14 inches of the ceiling, leaving the full floor area clear. No tools, no disassembly, no recalibration required to redeploy — the screen returns to the same hanging position every time via the drive tube and weight bar system.
Is the SportScreen Vanish compatible with all golf simulator launch monitors?
Yes — the SportScreen Vanish Series is compatible with all portable and overhead launch monitors carried at GolfSimPlanet. Portable launch monitors (FlightScope Mevo+, Foresight GC3, SkyTrak+, Swing Caddie SC4) position on the mat surface behind the ball and do not require ceiling mounting — no conflict with the retractable housing. Overhead launch monitors (Uneekor EYE XO, EYE XO2, Foresight GCHawk) require a separate ceiling mount independent of the Vanish retractable housing — GolfSimPlanet’s team confirms mounting layout for overhead units with retractable enclosures before every order ships.
What ceiling height do I need for a retractable simulator screen?
Minimum recommended ceiling height for a retractable golf simulator screen is the screen playing height (8–8.5 ft minimum for driver shots) plus the retracted housing depth (12–14 inches for Vanish Series; 6–8 inches for Carl’s Place Retractable Kit drive tube). For a Vanish Series installation with 8.5 ft playing height, a minimum ceiling height of approximately 10 ft is recommended. Vanish 13H and 16H models are specifically designed for high-ceiling garage bays (10–12 ft). Standard garage ceiling height of 8 ft is insufficient for most retractable screen installations — contact our team with your exact ceiling height before ordering.
Can I use a retractable simulator screen in a garage with cars?
Yes — this is the primary use case for the SportScreen Vanish Series. When fully retracted, the entire enclosure sits within 12–14 inches of the ceiling, leaving the full floor area accessible for vehicles. The motorized Vanish version deploys and retracts via remote control or voice command (Alexa/Google Home), making the transition from golf mode to car storage a single button press. The Carl’s Place Retractable Kit retracts only the impact screen — side barriers and ceiling protection must be handled separately if a full multi-use space conversion is required.
Key Features of Our Retractable Simulator Screens
Retractable Golf Simulator Screens — Key Specs & Selection Criteria
Four attributes determine whether a retractable golf simulator screen works correctly in your space: screen material and ball impact rating, retraction mechanism reliability, projection surface quality, and retracted profile depth relative to your ceiling height. A screen that retains wrinkles after repeated retraction cycles degrades image quality; a retraction mechanism that shifts the screen’s hanging position between deployments introduces projector alignment errors that require manual correction before every session.
Space Reclamation & Retracted Profile
The defining advantage of a retractable screen over a fixed impact screen is the ability to reclaim the full floor area in under 60 seconds without tools or disassembly. The SportScreen Vanish Series retracts the entire enclosure — three-ply impact screen, blackout side panels, and ceiling protection — to within 12–14 inches of the ceiling as a single integrated unit, leaving the complete floor area clear for vehicle parking, workshop use, or other activities. The Carl’s Place Retractable Kit rolls the impact screen to the ceiling rail — ideal for existing enclosure frames where side barriers are already fixed in place. Both systems return to the identical hanging position on redeployment via the aluminum drive tube and bottom weight bar system, requiring no projector or launch monitor recalibration between sessions.
Screen Material & Ball Impact Rating
Both product lines at GolfSimPlanet use multi-layer impact-resistant polyester rated for golf ball impacts up to 250 mph — sufficient for driver ball speeds across all skill levels. The Carl’s Place Retractable Kit uses the same three-layer impact polyester as Carl’s Place’s standard fixed impact screen range. The SportScreen Vanish Series uses a three-ply construction with a rear membrane layer that softens ball impact sound and reduces bounceback — a meaningful difference in garage installations where sound travels to adjacent living areas. Blackout side panels on the Vanish Series eliminate ambient light bleed during play, improving projector image contrast without requiring a completely darkened room.
Retraction Mechanism & Deployment Speed
Both manual and motorized retraction options are available across both product lines. Manual hand crank retraction on both Carl’s Place and SportScreen Vanish systems achieves full retraction in under 60 seconds with no tools. Motorized retraction on the SportScreen Vanish Series operates via remote control or wall switch — the motorized Vanish version is compatible with Alexa and Google Home for voice-command deployment and retraction as part of a home automation routine. Manual versions are more reliable long-term (no motor maintenance) and lower cost; motorized versions are recommended for commercial installations or high-frequency daily use where convenience justifies the premium. Both retraction systems hold the screen at a fixed tension during play — no sagging or surface ripple that would distort the projected image.
Projection Surface Quality & Compatibility
Both product lines support front projection only — rear projection is not compatible with either retractable system. The screen surface on Carl’s Place and SportScreen Vanish products is a matte white woven polyester that diffuses projector output evenly across the full screen area without hot spots or color shift at viewing angles typical in a simulator hitting position (3–6 ft from the screen). Screen tension is maintained by the bottom weight bar on the Carl’s Place Kit and by the Vanish baffle system — both prevent the surface creasing and sagging that degrade projected image sharpness over time on cheaper retractable solutions. Compatible with all short throw and normal throw projectors in our catalog; ceiling height and throw distance requirements vary by projector model.
📋 Not sure which retractable screen fits your ceiling height and room configuration? GolfSimPlanet’s Scottsdale, AZ team reviews your exact room dimensions, ceiling height, mount point location, and projector throw distance before recommending a specific model and size. Contact us here.
Why Choose Us When You Shop Retractable Simulator Screens?
Why Buy Retractable Simulator Screens from GolfSimPlanet?
Retractable simulator screens are the most installation-specific product in the golf simulator category — ceiling height range, room width, mount point structural capacity, projector throw distance, and whether you need a screen-only kit or a complete enclosure system all determine which product works in your specific space. GolfSimPlanet carries the Carl’s Place Retractable Impact Screen Kit and the SportScreen Vanish Series — the two most widely used retractable golf simulator solutions in the US home simulator market — covering every installation scenario: Vanish 11 (ceilings 108″–126″, 4:3 ratio, 120″×90″ projectable area), Vanish 13H (ceilings 125.5″–143.5″, 4:3, 143″×107.5″ projectable area), Vanish 16 (ceilings 108″–126″, 16:9, 7.5’H×15’W viewport), and Vanish 16H (ceilings 120″–138″, 16:9, 183″×102″ projectable area) — plus Carl’s Place Retractable Kits in 94″×126″ and 105″×126″ for existing enclosure frame installations. Both product lines are backed by a 2-year manufacturer warranty, rated for 250 mph ball impacts, and available with manual or motorized retraction. Our Scottsdale, AZ team reviews your exact ceiling height, room width, mount point location, and projector throw distance before recommending a specific model and size — so you are not discovering a fit problem after a large-format screen has been ceiling-mounted. Every retractable screen order is confirmed against your launch monitor mounting requirements and enclosure configuration before it ships.
